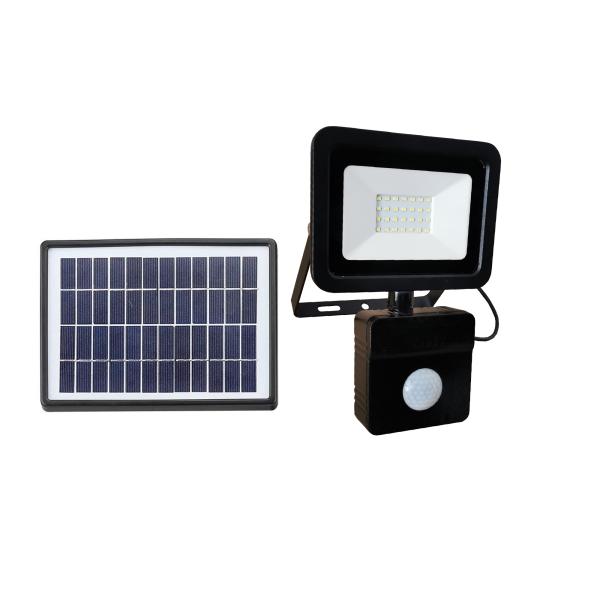

Super Brightness 1000lumens Solar Shed Light With Motion Sensor

Speficiation:

• Installation

Before install the unit, turn on the switch which locate at the plastic box of the

light, and cover the motion sensor head by hand very closely to ensure the light

can turn on after some seconds. Then you can start to install the light as follow.

Choose a place where need lights at night and the select location should better

situate the solar panel where there is abundant sunshine during the day.

Mark the hole location of the solar panel box, then set the solar panel aside.

Check that the marked areas are clear of obstacles such as cables and electrical

lines. Drill holes for the enclosed screws and plastic anchors.

Measure the space between the two hoes on the lamp and drill another hole on the

wall accordingly. Insert the dry anchor and screw.

Secure the lamp in place with the screws.

Carefully route the power code of the solar panel to the lamp and connect it with the

cable from lamp.

Swivel the motion head so that it faces the area where movement will occur and

tighten the lock.

• Operation

1.Turn on the power switch to “ON” to activate the solar security light.

2.The light will automatically turn ON during the night.

3.Test the light by walking or driving into the protected area.

4.The lamp should light up temporarily when motion is detected.

5.The light will be remaining as long as the motion moves and detects.

6.The light will turn off within 45 seconds after motion disappear.

• BATTERY MAINTENANCE ​

Batteries should not be stored unless fully charged. Storing a battery on an

empty charge will destroy it. If you are going to turn the unit off for a long period

of time, please charge the unit for about 20 hours and then turn the switch off.
